# 第一章介绍

本套系统搭建在k8s之上，采用kubesphere进行管理

之前为了方便，有介绍过kubesphere基础组件的搭建，比如redis、nacos等，这里将会直接从服务部署开始

# 第二章网关流水线创建

流水线流程分为一下及步

拉取代码
编译打包
Build Docker镜像，镜像打标签
上传镜像到阿里云
部署

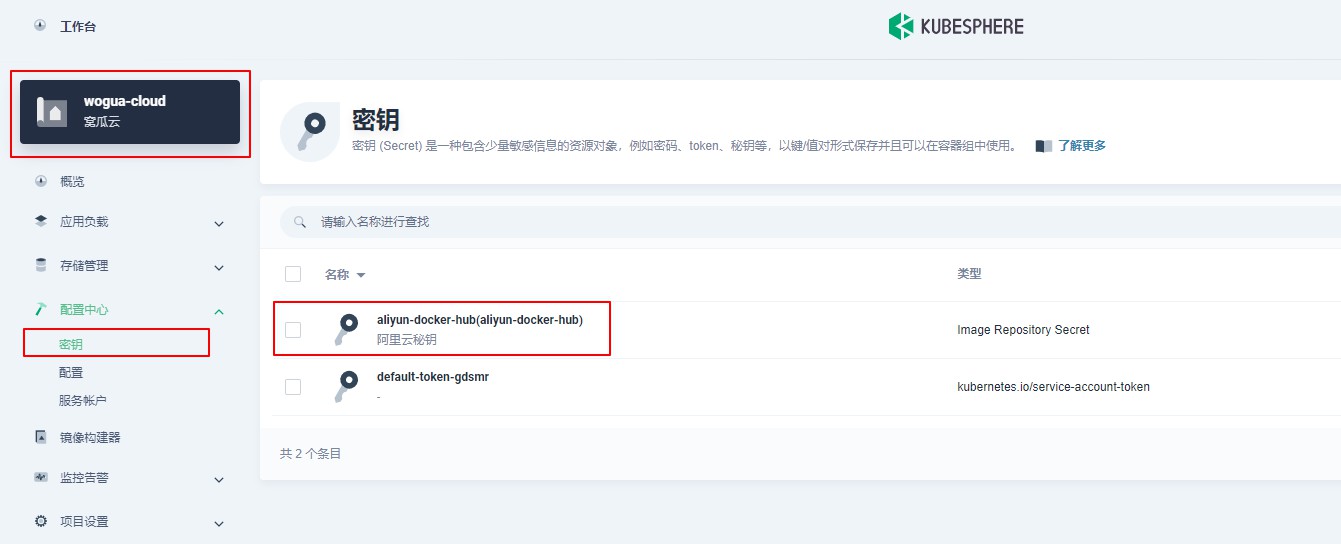

# 2.1 镜像拉取凭证

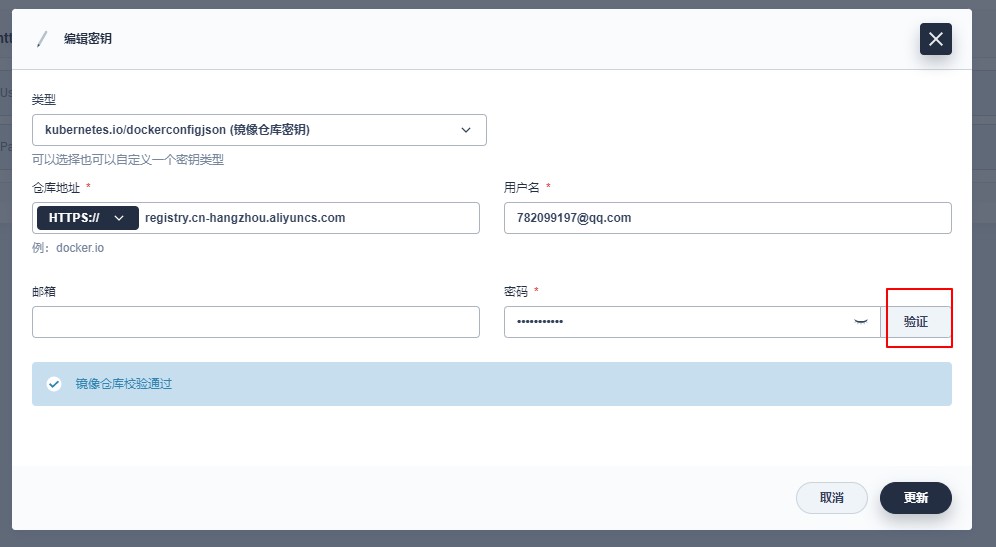

部署时需要拉取镜像，这里配置相关秘钥

信息输入完成可以点击验证测试

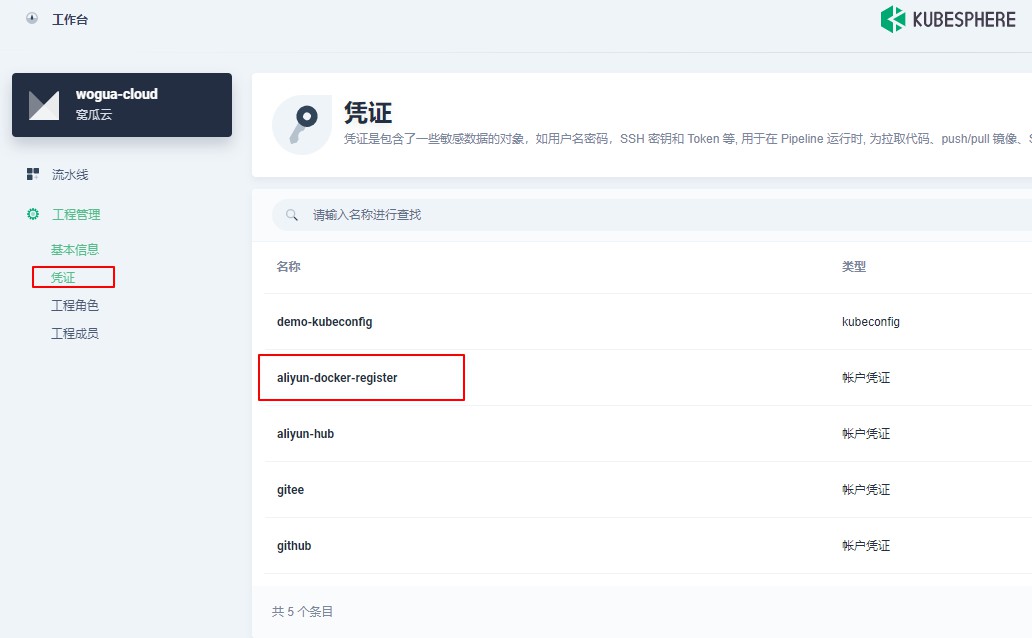

# 2.2 流水线凭证

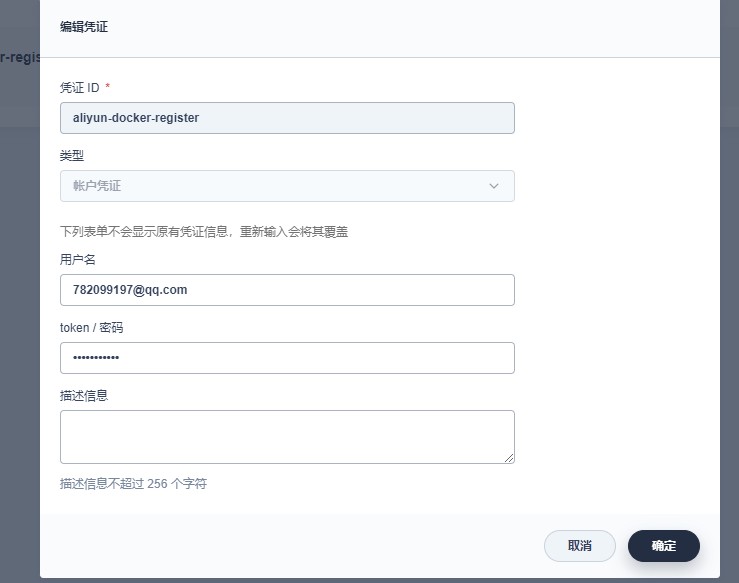

流水线在编写时需要登录阿里云镜像，所以需要相关凭证

# 2.3 工程中添加Dockerfile

FROM openjdk:8-jdk
LABEL maintainer=zhishun.cai


#docker run -e PARAMS="--server.port 9090"
# ENV PARAMS="--server.port=8080 --spring.profiles.active=prod --spring.cloud.nacos.discovery.server-addr=nacos.wogua-cloud:8848 --spring.cloud.nacos.config.server-addr=nacos.wogua-cloud:8848 --spring.cloud.nacos.config.namespace=prod --spring.cloud.nacos.discovery.namespace=prod --spring.cloud.nacos.config.file-extension=yml"
RUN /bin/cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && echo 'Asia/Shanghai' >/etc/timezone

COPY target/*.jar /app.jar
EXPOSE 8080

#
ENTRYPOINT ["/bin/sh","-c","java -Dfile.encoding=utf8 -Djava.security.egd=file:/dev/./urandom -jar app.jar"]

1
2
3
4
5
6
7
8
9
10
11
12
13

# 2.4 Gateway配置多环境

Gateway Pom文件中添加

 <profiles>
        <profile>
            <id>dev</id>
            <properties>
                <env>dev</env>
            </properties>
            <!-- 是否默认 true表示默认-->
            <activation>
                <activeByDefault>true</activeByDefault>
            </activation>
        </profile>
        <profile>
            <!-- 生产环境 -->
            <id>prod</id>
            <properties>
                <env>prod</env>
            </properties>
        </profile>
    </profiles>

    <build>
        <finalName>wogua-gateway</finalName>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>

        <resources>
            <resource>
                <directory>src/main/resources/profile/${env}</directory>
                <includes>
                    <include>bootstrap.yml</include>
                    <include>bootstrap-*.yml</include>
                </includes>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                    <include>**/*.txt</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
    </build>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

父工程中添加

<profiles>
        <profile>
            <id>dev</id>
            <properties>
                <env>dev</env>
            </properties>
            <!-- 是否默认 true表示默认-->
            <activation>
                <activeByDefault>true</activeByDefault>
            </activation>
        </profile>
        <profile>
            <!-- 生产环境 -->
            <id>prod</id>
            <properties>
                <env>prod</env>
            </properties>
        </profile>
 </profiles>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

在流水线打包时指定相应环境即可

# 2.5 部署yml配置

在工程先创建文件夹config

在config中创建deploy.yml文件

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: wogua-cloud-gateway
  name: wogua-cloud-gateway
  namespace: wogua-cloud   #一定要写名称空间
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  selector:
    matchLabels:
      app: wogua-cloud-gateway
  strategy:
    rollingUpdate:
      maxSurge: 50%
      maxUnavailable: 50%
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: wogua-cloud-gateway
    spec:
      imagePullSecrets:
        - name: aliyun-docker-hub  #提前在项目下配置访问阿里云的账号密码
      containers:
        - image: $REGISTRY/$ALIYUNHUB_NAMESPACE/wogua-gateway:SNAPSHOT-$BUILD_NUMBER
          #         readinessProbe:
          #           httpGet:
          #             path: /actuator/health
          #             port: 8080
          #           timeoutSeconds: 10
          #           failureThreshold: 30
          #           periodSeconds: 5
          imagePullPolicy: Always
          name: app
          ports:
            - containerPort: 8080
              protocol: TCP
          resources:
            limits:
              cpu: 300m
              memory: 600Mi
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: wogua-cloud-gateway
  name: wogua-cloud-gateway
  namespace: wogua-cloud
spec:
  ports:
    - name: http
      port: 8080
      protocol: TCP
      targetPort: 8080
  selector:
    app: wogua-cloud-gateway
  sessionAffinity: None
  type: ClusterIP

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66

# 2.6 创建流水线导入相关配置

pipeline {
  agent {
    node {
      label 'maven'
    }

  }
  stages {
    stage('拉取代码') {
      agent none
      steps {
        container('base') {
          git(url: 'https://gitee.com/damoncai/wogua-cloud.git', credentialsId: 'gitee', changelog: true, poll: false)
        }

        sh 'ls'
      }
    }

    stage('编译') {
      agent none
      steps {
        container('maven') {
          sh 'mvn clean package -P prod'
        }

      }
    }

    stage('构建镜像') {
      agent none
      steps {
        container('maven') {
          sh 'docker build -t wogua-gateway:v1.0 -f wogua-gateway/Dockerfile wogua-gateway/'
        }

      }
    }

    stage('推送镜像') {
      agent none
      steps {
        container('maven') {
          withCredentials([usernamePassword(credentialsId : 'aliyun-docker-register' ,passwordVariable : 'L_PWD' ,usernameVariable : 'L_USERNAME' ,)]) {
            sh 'echo "$L_PWD" | docker login $REGISTRY -u "$L_USERNAME" --password-stdin'
            sh 'docker tag  wogua-gateway:v1.0 $REGISTRY/$DOCKERHUB_NAMESPACE/wogua-gateway:SNAPSHOT-$BUILD_NUMBER'
            sh 'docker push  $REGISTRY/$DOCKERHUB_NAMESPACE/wogua-gateway:SNAPSHOT-$BUILD_NUMBER'
          }

        }

      }
    }

    stage('deploy to dev') {
      agent none
      steps {
        kubernetesDeploy(configs: 'wogua-gateway/deploy/**', enableConfigSubstitution: true, kubeconfigId: "$KUBECONFIG_CREDENTIAL_ID")
      }
    }

  }
  environment {
    DOCKER_CREDENTIAL_ID = 'dockerhub-id'
    GITHUB_CREDENTIAL_ID = 'github-id'
    KUBECONFIG_CREDENTIAL_ID = 'demo-kubeconfig'
    REGISTRY = 'registry.cn-hangzhou.aliyuncs.com'
    DOCKERHUB_NAMESPACE = 'wogua-cloud'
    GITHUB_ACCOUNT = 'kubesphere'
    APP_NAME = 'devops-java-sample'
    ALIYUNHUB_NAMESPACE = 'wogua-cloud'
  }
  parameters {
    string(name: 'TAG_NAME', defaultValue: '', description: '')
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76

认证服务，系统服务等只需要按上面步骤修改相应配置信息

具体参考：http://www.helloworld.center/docs/cloudnative/05.kubesphere/03.kubesphere-devops.html

# 第三章前端部署

参考：http://www.helloworld.center/docs/cloudnative/05.kubesphere/03.kubesphere-devops.html#_4-8-%E5%89%8D%E7%AB%AF%E9%83%A8%E7%BD%B2

# 3.1 Dockerfile创建

FROM nginx

#将dist目录内容复制到nginx容器html内部
COPY dist /usr/share/nginx/html/

EXPOSE 80

1
2
3
4
5
6

# 3.2 部署配置文件创建

在工程先创建文件夹config

在config中创建deploy.yml文件

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: wogua-cloud-web
  name: wogua-cloud-web
  namespace: wogua-cloud   #一定要写名称空间
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  selector:
    matchLabels:
      app: wogua-cloud-web
  strategy:
    rollingUpdate:
      maxSurge: 50%
      maxUnavailable: 50%
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: wogua-cloud-web
    spec:
      imagePullSecrets:
        - name: aliyun-docker-hub  #提前在项目下配置访问阿里云的账号密码
      containers:
        - image: $REGISTRY/$ALIYUNHUB_NAMESPACE/wogua-cloud-web:SNAPSHOT-$BUILD_NUMBER
          #         readinessProbe:
          #           httpGet:
          #             path: /actuator/health
          #             port: 8080
          #           timeoutSeconds: 10
          #           failureThreshold: 30
          #           periodSeconds: 5
          imagePullPolicy: Always
          name: app
          ports:
            - containerPort: 80
              protocol: TCP
          resources:
            limits:
              cpu: 300m
              memory: 600Mi
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: wogua-cloud-web
  name: wogua-cloud-web
  namespace: wogua-cloud
spec:
  ports:
    - name: http
      port: 80
      protocol: TCP
      targetPort: 80
      nodePort: 32248
  selector:
    app: wogua-cloud-web
  sessionAffinity: None
  type: NodePort

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
